Another proprietary product from our R&D department is the Automatic EC Controller ProSystemAqua.

The EC regulator controller ProSystemAqua is the most complete and user-friendly adjustable nutrient controller on the market. It has been designed for the automatic control of fertilizers, nutrients, or boosters in water tanks. In addition to its incredible technical features, it has the most competitive price on the market. With a minimalist and simple design, this controller becomes a truly easy-to-use and fully automatic tool.

The EC regulator controller ProSystemAqua allows continuous measurement of water conductivity, analyzing and injecting the necessary nutrients or boosters into the irrigation water tank until the desired EC level is reached.

Conductivity is precisely and accurately controlled by the controller, with a maximum fertilizer injection flow rate of 500 ml/h. Once the desired EC level is programmed, the controller will dose by suctioning the pre-mixed fertilizer solution prepared in a small tank and inject it into the clean water tank until the programmed EC value is achieved.

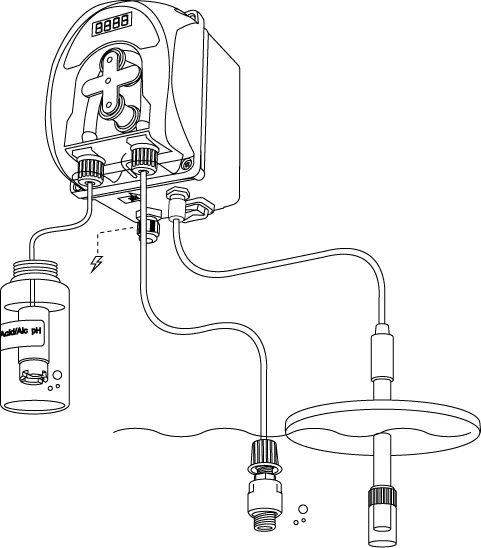

The EC regulator controller ProSystemAqua comes equipped with a complete installation kit, very easy to use. Inside the packaging, you will find different elements that must be connected following the usage instructions. These elements include:

• 1. Conductivity probe.
• 2. Connection cable for EC probe.
• 3. Suction and discharge fittings.
• 4. Suction and discharge tubing.
• 5. Mounting bracket.
• 6. Screws for fixation.
• 7. User manual.

Operation of the EC regulator controller ProSystemAqua.

1. Turning on the Automatic EC Controller:

   Once the controller and all its components are installed, the collector is placed, and the probe is connected, we proceed with the controller programming, setting the desired EC value in the water tank and calibrating the probe. (See startup manual and installation video)

2. Automatic EC Controller and Water Recirculation Controller:

   The Automatic EC Controller must always be connected along with the water recirculation controller of the water tank. The tank water circulates through the EC controller collector, where the injector and EC probe will be installed. (See installation video).

3. Conductivity Measurement:

   The EC probe continuously detects the water conductivity and displays the value digitally on the screen.

4. Fertilizer Suction:

   The controller suctions through the tube and via the suction filter, from the pre-mixed fertilizer container.

5. Fertilizer Injection:

   The EC regulator controller doses the nutrient through the tube and injects it into the collector injection valve until the programmed EC value is reached.
